MikroTik LtAP mini LTE kit RB912R-2nD-LTm&EC200A-EU — LTE router
Javob haqida sizni xabardor qilishimiz uchun tizimga kiring

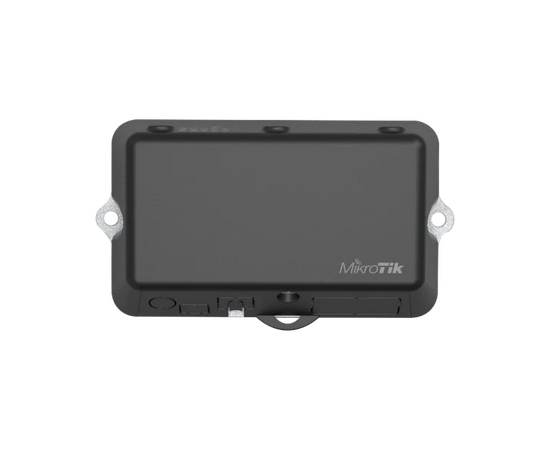

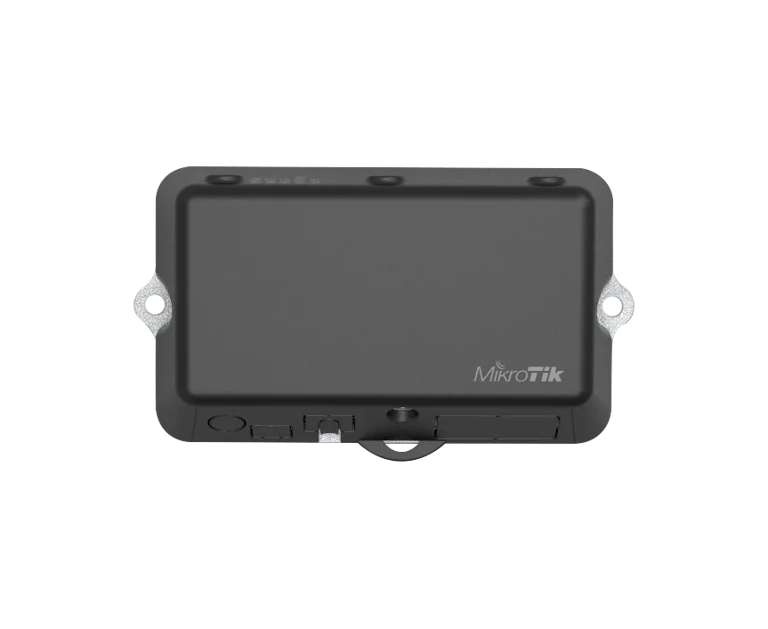

MikroTik LtAP mini LTE kit RB912R-2nD-LTm&EC200A-EU — LTE router
MikroTik LtAP mini LTE kit RB912R-2nD-LTm&EC200A-EU — tarmoqni mobil aloqa orqali ulash uchun LTE router.
Modelning asosiy parametrlari: 10/100 Mbit/s Ethernet portlari: 1; Wi-Fi avlodi (2.4 GHz): Wi-Fi 4; LTE toifasi: 4 (150Mbps yuklab olish, 50Mbps yuborish); Operatsion tizim: RouterOS v7; Protsessor yadrolari soni: 1; Protsessorning nominal chastotasi: 650 MHz.
O‘zbekistondagi loyiha uchun LtAP mini LTE kit modelini kerakli interfeyslar va foydalanish sharoitlariga qarab tanlang. Jadvaldagi RB912R-2nD-LTm&EC200A-EU versiyasining aniq parametrlari uskunani tarmoqning boshqa qismlari bilan moslashtirishga yordam beradi.
Texnik xususiyatlar
| Ishlab chiqaruvchi kodi | RB912R-2nD-LTm&EC200A-EU |
|---|---|
| Arxitektura | MIPSBE |
| Protsessor | QCA9531 |
| Protsessor yadrolari soni | 1 |
| Protsessorning nominal chastotasi | 650 MHz |
| RouterOS litsenziya darajasi | 4 |
| Operatsion tizim | RouterOS v7 |
| Operativ xotira | 64 MB |
| Ma’lumot saqlash xotirasi hajmi | 16 MB |
| Ma’lumot saqlash xotirasi turi | FLASH |
| Nosozliklar orasidagi o‘rtacha ishlash vaqti (MTBF) | 25C da taxminan 100'000 soat |
| Sinovdan o‘tkazilgan muhit harorati | -40°C to 70°C |
| MicroUSB kirish kuchlanishi | 5 V |
| DC quvvat kirishlari soni | 3 (DC jack, PoE-IN, MicroUSB) |
| DC ulagichining kirish kuchlanishi | 8-30 V |
| Eng yuqori quvvat sarfi | 8 W |
| PoE orqali quvvat qabul qilish | 802.3af/at |
| Sovutish turi | Passiv |
| PoE kirish kuchlanishi | 12-57 V |
| 2G toifasi | Class12 |
| 2G diapazonlari | 3 (1800MHz) 8 (900MHz) |
| 3G toifasi | R7 (21Mbps yuklab olishs, 5.76Mbps yuborish) |
| 3G diapazonlari | 1 (2100MHz) 5 (850MHz) 8 (900MHz) |
| LTE toifasi | 4 (150Mbps yuklab olish, 50Mbps yuborish) |
| Yuklab olish uchun MIMO (DL) | 2x2 |
| Yuborish uchun MIMO (UL) | 1x1 |
| LTE FDD diapazonlari | 1 (2100MHz) 3 (1800MHz) 5 (850MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 28 (700MHz) |
| LTE TDD diapazonlari | 38 (2600MHz) 40 (2300MHz) 41n (2500MHz) |
| TAC kodi | 86314105 |
| Eng yuqori radio tezligi (2.4 GHz) | 300 Mbit/s |
| Radio zanjirlari soni (2.4 GHz) | 2 |
| Simsiz aloqa standartlari (2.4 GHz) | 802.11b/g/n |
| Antenna kuchaytirishi (2.4 GHz), dBi | 1.5 |
| Radio chip modeli (2.4 GHz) | QCA9531 |
| Wi-Fi avlodi (2.4 GHz) | Wi-Fi 4 |
| 10/100 Mbit/s Ethernet portlari | 1 |
| SIM slotlari soni | 2 Modem (Mini SIM) |
| MiniPCI-e slotlari | 1 |
| Ketma-ket konsol porti | RS232 |
| Mode tugmasi | Ha |
| GNSS standartlari | GPS |
| GPS antenna ulagichi turi | uUFL |
| Sertifikatlash | CE, E-MARK, EAC, ROHS |
| IP himoya darajasi | IP54 |
O‘rnatishdan oldin ushbu versiyaning mosligi, quvvat ta’minoti va foydalanish sharoitlarini tekshiring.
Brend
MikroTik
Operatsion tizim
RouterOS
SIM-karta uyasi
2
USB port
1
USB port turi
microUSB type AB
Quvvat ta’minoti
Turi (PoE in)
802.3af/at
Kirish kuchlanishi (PoE in)
12-57 V
Turi (PoE out)
Yo‘q
DC quvvati
8-30 V
Eng yuqori iste’mol quvvati
9 W
Simsiz aloqa xususiyatlari
2.4 gigagertsli kanallar soni
2
2.4 gigagertsli antenna kuchaytirgichi dBi
1.5
Ethernet tarmog‘i
10/100 Mbit/s port
1
10/100/1000 Ethernet porti
None
Ethernet Combo porti
0
Optik tola
SFP+ porti
None
Asosiy texnik xususiyatlar
Protsessor arxitekturasi
MIPSBE
Protsessor yadrolari soni
1
Protsessor chastotasi
650 MHz
Operatsion tizim litsenziyasi darajasi
4
Operativ xotira hajmi
64 MB
Doimiy xotira hajmi
16 MB
O‘lchamlari
139 x 77 x 28,5 mm
